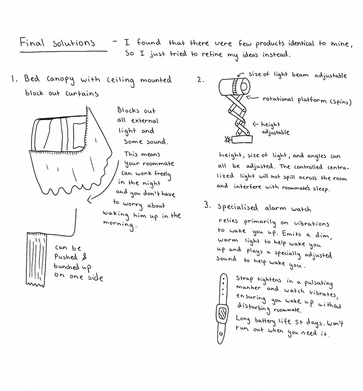

01 / Ideate
Ideate
Explored directional task-lighting concepts for different working positions, tasks, and day-to-night needs.
Back to selected workAdjustable
01 / Product design & mechanical systems
Adjustable
scissor-lift lamp
Mechanical design · Task lighting
Designed and built a desk lamp for late-night work in a shared dorm room, with adjustable height, head rotation, and beam width.
Watch lamp videoProject introduction · YouTube
Prototype specificationsHeight, direction
Height, direction
& beam control
A scissor-lift mechanism, swiveling head, and variable-focus flashlight provide control over the position and spread of the light.
- Height range
- 25–80cm
- Head rotation
- 360°
- Weight (approx.)
- 1kg
- Build cost (approx.)
- $25USD
The brief
Design requirements
Living in a shared dorm room meant I often needed to work late without disturbing my roommate. Conventional desk lamps either spilled too much light or lacked the flexibility I wanted for different tasks.
I set out to build a compact lamp that combined a scissor-lift mechanism, a swiveling head, and variable-focus lighting. The design had to provide directional illumination while remaining stable and easy to reposition.
The challenge
Balance height adjustment, stability, head articulation, and beam control in a single product that would be practical to use every day.
The approach
Prototype the movement first, refine the structural geometry, and integrate an adjustable flashlight and its variable-focus optics with custom mechanical components.
Development process
Design & build process
Original sketches and prototypes trace the project’s development. Select an image to look more closely.

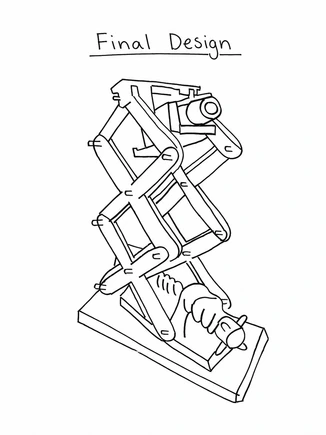

02 / Design
Design
Developed the scissor-lift geometry, head mechanism, and supporting structure; refined proportions for stability and usability.
03 / Prototype
Prototype
Used foamboard and straws to explore the mechanism before fabricating and assembling the functional components.
04 / Test & refine
Test & refine
Tested height, articulation, stability, and beam control, then refined friction, movement, and ergonomics.
Engineering the details
Mechanism & optical design
Scissor-lift stability
I evaluated different adjustment options before settling on a scissor-lift mechanism. The geometry needed to stay stable as the lamp extended, rather than only working well at one height.

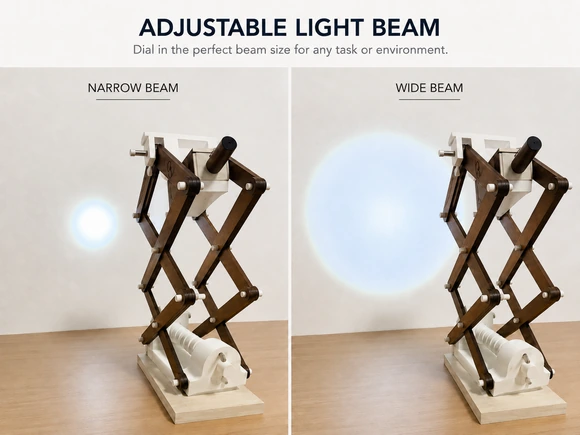

Spotlight-to-floodlight control
An adjustable flashlight provided the variable-focus optics. Integrating it into the lamp allowed the beam to move between a focused spotlight and a wider floodlight without replacing the light source.
Adjustment & ergonomics
Height, head movement, illumination range, and focus influenced one another. Multiple design iterations addressed friction and movement while keeping the complete product usable.
Build notes
Materials & specifications
| Height | Adjustable from 25 to 80 cm |
|---|---|
| Width | 20 cm |
| Head rotation | 360° |
| Beam | Spotlight to floodlight |
| Weight | Approximately 1 kg |
| Build cost | Approximately US$25 |
Materials & components
Laser-cut wood, 3D-printed plastic, fasteners, a radial ball bearing, an adjustable flashlight, and electrical tape.
Tools & fabrication
Laser cutting, Bambu Lab 3D printing, saws, a drill and drill press, sanding tools, measuring tools, and hand assembly.
Build figures are approximate and reflect the prototype shown.
Outcome & lessons learned
A functional,
adjustable task lamp
This project taught me to balance function, usability, appearance, and manufacturability around a real user need.
Iterative prototyping helped me refine the mechanism, friction, head movement, and beam control while developing my mechanical design and fabrication skills.
